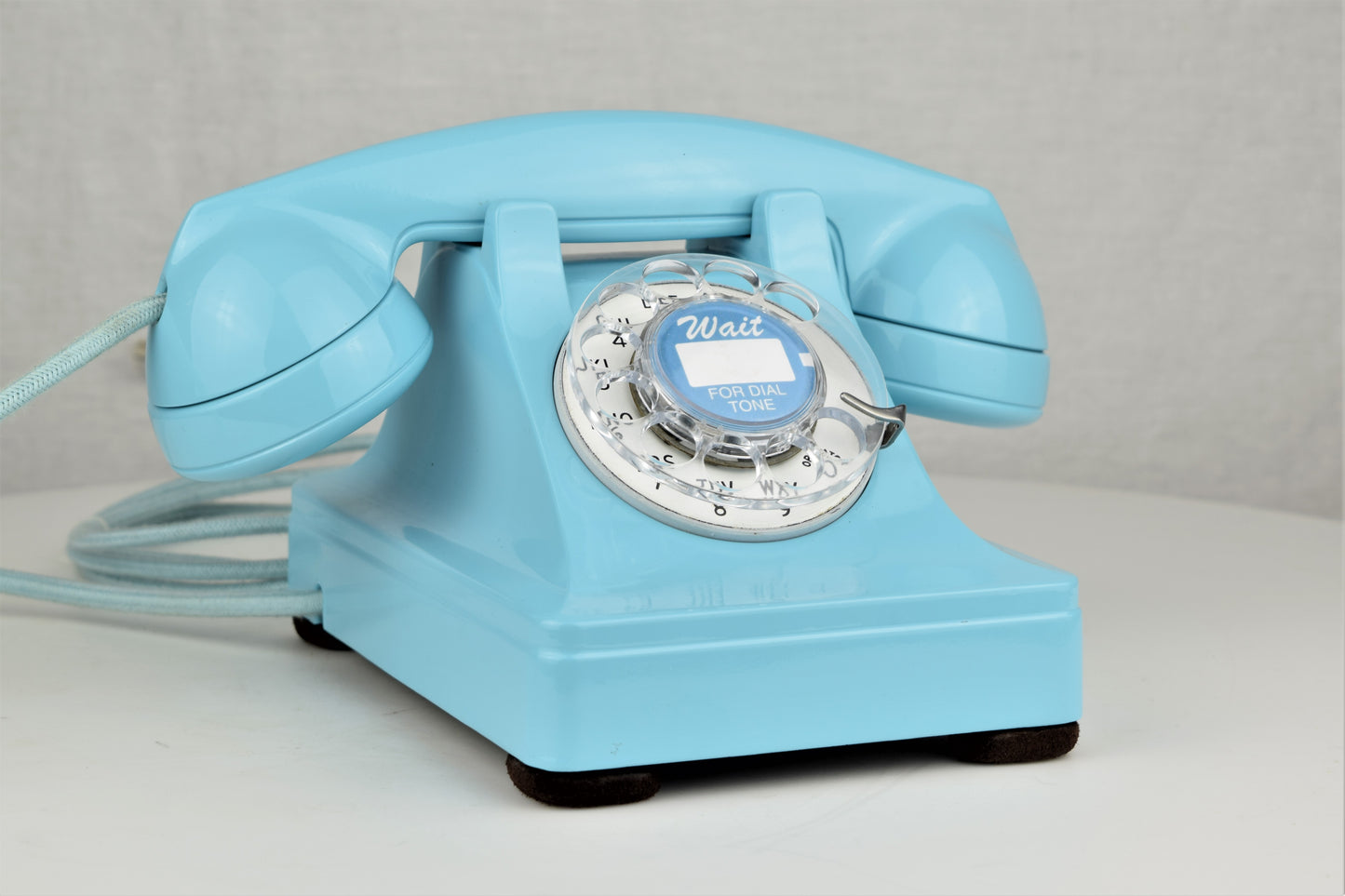

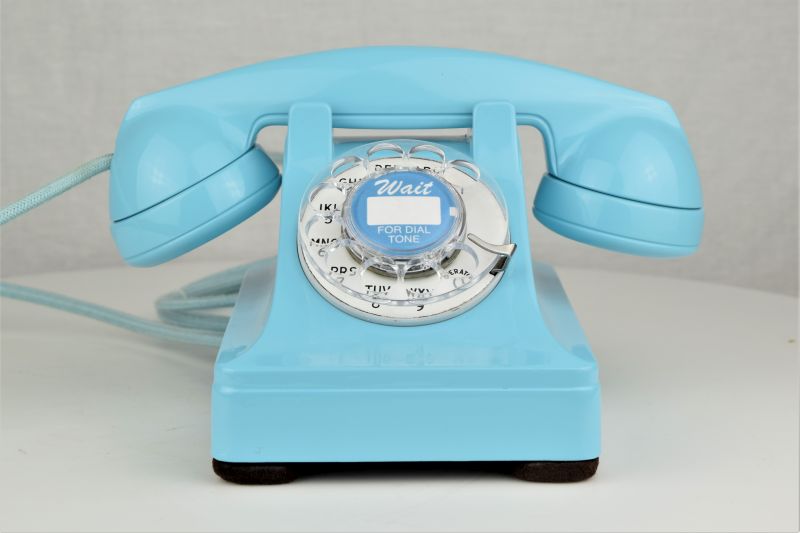

Western Electric Aqua Blue Model 302 Front View
SKU 20937
Price: US$299.95
Pulse to Tone Converter
Dial Type
Dial Card Option
Quantity Out of stock
Click here to be notified of price drops of this item
Click here to be notified when this item is nearly out of stock
Click here to subscribe for 'Back-in-stock' notifications
Fantastic Western Electric 302 - Custom Aqua Blue Version!

History

This wonderful working example of 1930s design is sure to fit your period decorating scheme. What I love most about this phone is the great RRRING that will be sure to get the attention of everyone in your household! The Model 302 desk telephone was introduced in 1937. Created by famed industrial designer Henry Dreyfuss, the first versions had a die-cast zinc housing, however, demands for metal during WW2 necessitated a shift to thermo-plastic housings on later models.

The 302 series was the first Western Electric desk telephone to contain the ringer and induction coil within the phone. Previous desk models required a separate subscriber set or bell box that was attached by the line cord. While the 302 series telephone is predominately found in black, it was also produced in nine colours. When the thermoplastic housings became the standard, the colours were moulded in the plastic of that colour rather than being painted on as was the case of the die-cast phones. Over the years the metal version of this phone has often been plated with various metallic finishes such as nickel and chrome. The Model 302 was manufactured until 1954 and during it's lifetime it was the workhorse of the phone system.



The Restoration Process

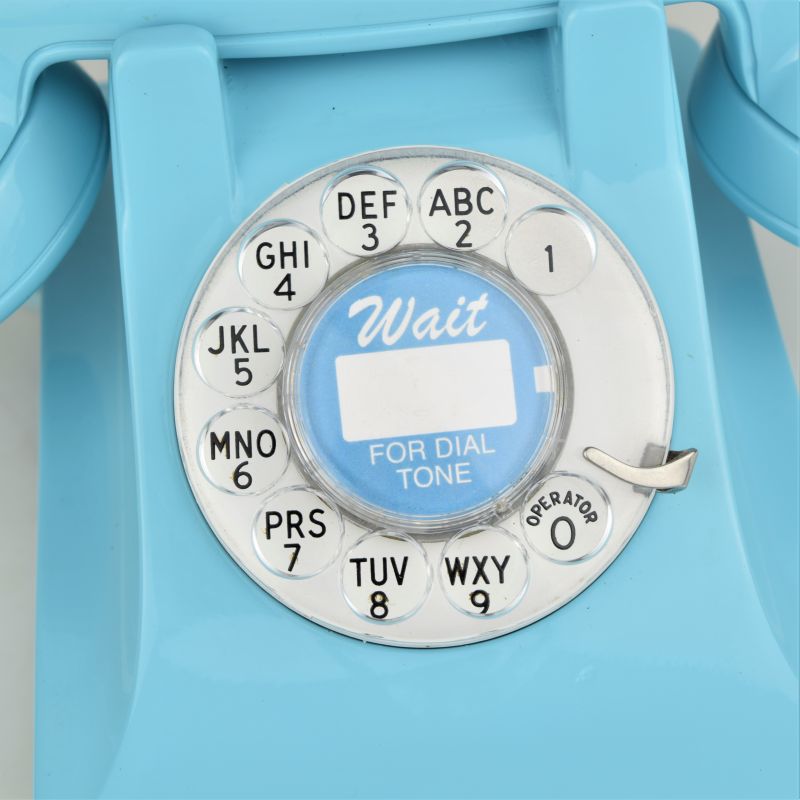

Dial – The dial has been fully disassembled, cleaned, lubed and timed to ensure years of trouble free service. The outer edge of the dial has been stripped and repainted with a gloss white enamel. Unless the dial is removed, this is something you will rarely ever even see, but this is how it would have come from the factory. The number plate has been cleaned and a perfectly matching overlay has been applied. We have added a brand new finger wheel and die cut dial card and acetate cover.

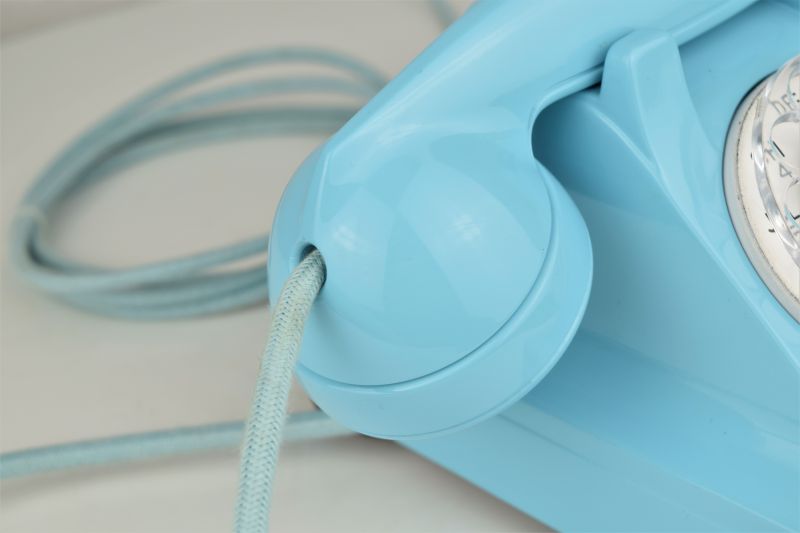

Cords – The phone has been outfitted with brand new cloth covered cords that are made in house on the same type of equipment originally used by the phone companies. They look amazing. The line cord has a modular connection to facilitate a modern connection to your wall jack.

Shell – The shell has been painstakingly put through a multi-step restoration process which includes sanding with 400, 800, 1000, 2000 grit. This ensures that there are no scratches, dents or dings. The shell is then professionally painted in a high gloss aqua blue using Polane. This is a very durable and scratch resistant paint that will hold up for years. This is the same process the phone companies used to refurbish their own telephones.

Base – The base is completely stripped of all its components and painted with a high gloss black. The components are then cleaned, tested and reinstalled.

Feet – The feet are disassembled and sand blasted. They are then rewrapped with super soft pig skin suede leather to ensure it does not damage the table it proudly sits on.

The phone goes extensive testing before to ensure it is in perfect working condition prior to shipping.

Dial Options

Number 6 - default - The last technology jump for 3 inch dials. A smooth return and light weight for dialing highlight this choice. It is sturdily built and very reliable.

Number 5 - The predominant dial of the 40's and 50's was replaced by the number 6 for a more universal fit. The number 5 dial features a "whirr" sound upon its return and a good weight for dialing.

Number 4 - This is the first 5 contact, 3 inch dial. The real joy of the dial lies in the highly sought after "clickity-clack" sound that was eliminated with the introduction of the number 5. What was eliminated from customer complaints, is now one of the features that  collectors look for most in hunting out the vintage phones.

 We are now also offering the option to have your telephone number printed on the dial card in the center of your fingerwheel. Select this option with the drop down menu, and type in the request in the comments section of the order or email us at Oldphoneguy@Oldphoneworks.com We will include 4 different font options in with the purchase of this new offer. Here are two examples!

  Custom Dial Card Example


: *
: *
: *
